BestCode Series 8

Next Generation Marking & Coding A complete range of small and large character high speed, non-contact printing systems. Series 8 Continuous Ink Jet Printers print lot/date, sell by, use by date, and other identifying marks on a wide range of substrates.
Continuous Ink Jet (CIJ) Technology, Single Printhead Control
10.4" (264mm) Color LCD, Touch Screen, Icon based - Graphical User Interface (GUI)
Printhead Orientation – Omnidirectional

Next Generation Marking & Coding

  • Performance. Innovation. Craftsmanship

    BestCode has made Series 8 systems the benchmark for Continuous Ink Jet Printers. Everything from the Series 8’s industrial exterior to the ease of use OneTouch™ interface, AutoOff™ Go Home Button and high speed performance have been engineered to make Series 8 products, the BEST!

  • Graphical user interface.

    Using graphics and intuitive processes provide a consistent, effortless user experience, shortening the learning curve. Only buttons valid for the current operation are available. A single start/stop button provides a single-step process to startup/shutdown a system. Auto diagnostics alert users through status or alert screens to take necessary preventive maintenance measures. On-line help information is provided on each screen.

  • Stay connected with CodeConnect™

    BestCode Series 8 systems feature integrated USB, RS232, multiple programmable inputs and outputs and optional Ethernet communications for network connectivity allowing integration into any application.

Case Study

Contact Us for More Information!

Ut enim ad minim veniam, quis nostrud exercitation ullamco

Contact UsGet a Quote

Data Sheets & Brochures

Features :

Continuous Ink Jet (CIJ) Technology, Single Printhead Control
10.4" (264mm) Color LCD, Touch Screen, Icon based - Graphical User Interface (GUI)
Operate in high dust or wet environments with 316 Stainless enclosure and positive air for enclosure and printhead.
Print high resolution, micro sized characters at high print speeds — mark and code at .025" (.6 mm) — .4" (10 mm) image heights
Print at speeds above 55,000 bottles per hour or over 2000 feet/minute (600 M/minute)
Operate Heavy Pigment Inks for dark colored substrates.

  • Brochure

    Model 82

  • Brochure

    Model 86

  • Brochure

    Model 87

    Brochure

    Model 88S High Speed

    Brochure

    Model 88S Opaque System

    Brochure

    Model 88S Micro System

  • Brochure

    Model 88

    Brochure

    Model 88S High Speed One

    Brochure

    Model 88S Food Grade System

    Brochure

    Model 88S Security System

Related Products

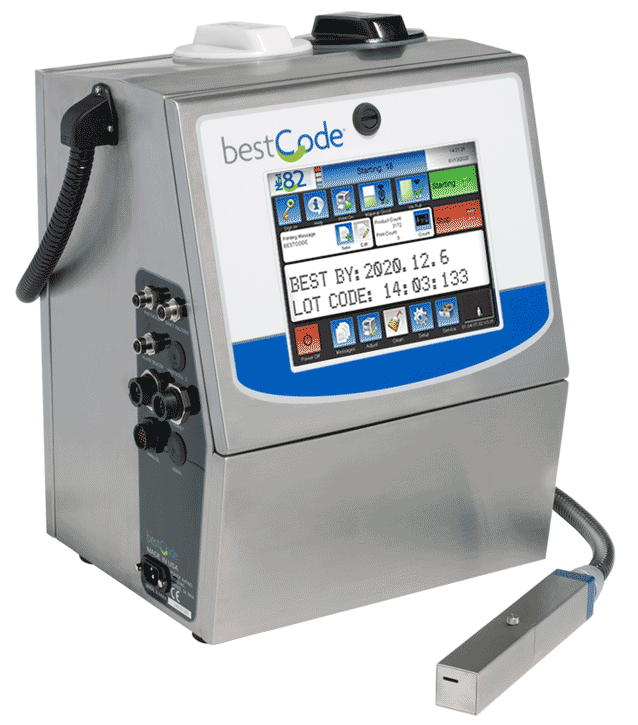

  • BestCode Model 82 Printer

    Mark and Code Anything The BestCode Model 82 is targeted at basic entry level applications, printing 1 or 2 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available for a wide range of applications. Typical applications mark and code one to two shifts per day, five days per week, averaging 2,000 — 4,000 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications Systems are simplified to allow anyone to operate, minimizing operator touches. Read what others are saying in the news. "One of the reasons Parkside Brewery chose the BestCode unit was because of the clarity and size of its 10.4 inch touchscreen display. The employees found it very easy to navigate, enabling them to make changes on the fly without any issues," Canadian Packaging.

  • BestCode Model 86 Printer

    Mark and Code Anything The BestCode Model 86 is targeted at high speed applications, printing 1, 2, or 3 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available in a variety of colors for a wide range of applications. Typical applications mark and code one to two shifts per day, five days per week, averaging 2,500 — 5,000 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications. Systems are simplified to allow anyone to operate, minimizing operator touches.

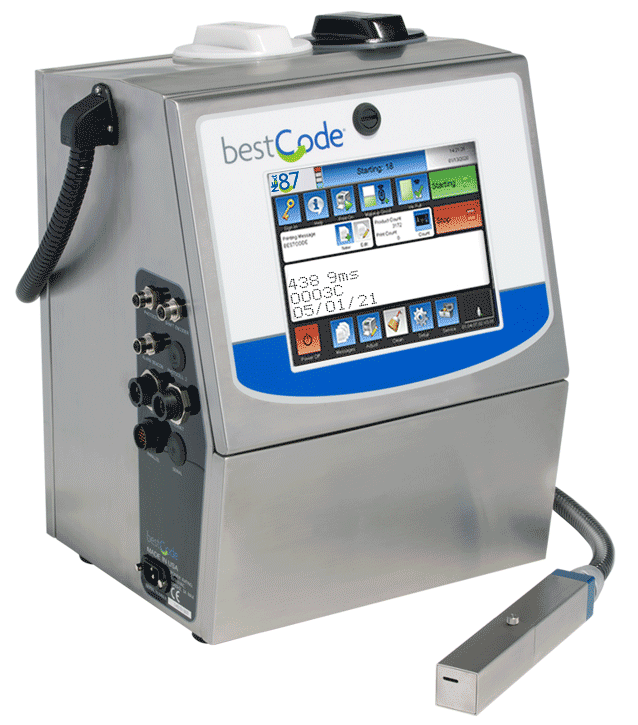

  • BestCode Model 87 System

    High Speed. Four Line Coding. Multi-Lingual Applications. The BestCode Model 87 is targeted at markets that have minimum requirement of 4 line printing, "multi-lingual" coding applications, printing 1, 2, 3, 4 or 5 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available for a wide range of applications. Typical applications mark and code one to two shifts per day, five days per week, averaging 2,500 — 5,000 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications.

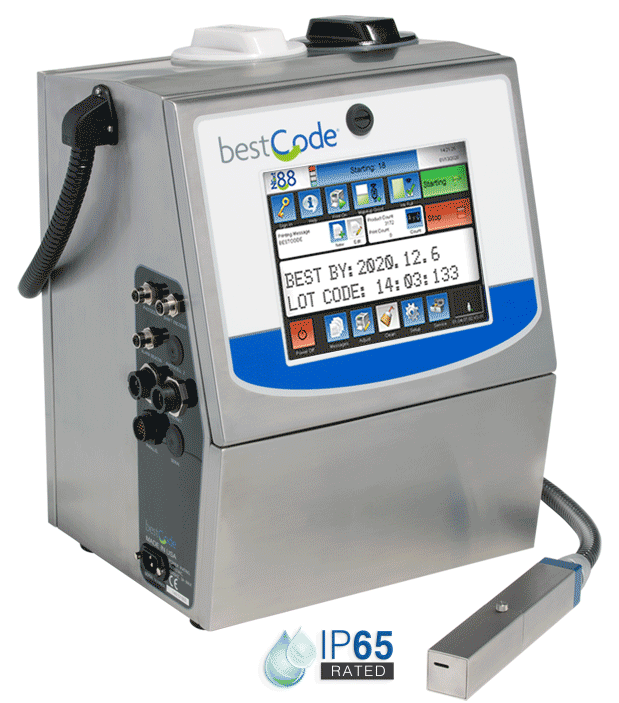

  • BestCode Model 88 System

    High Speed. High Use Applications. The BestCode Model 88 is targeted at high speed, high use applications, printing 1, 2, 3, 4 or 5 lines of text, barcodes or graphics. A complete range of dye and soft pigmented inks available in a variety of colors for a wide range of applications. BestCode systems are fully programmable and have EcoTec™ Fluid Management making it the most efficient CIJ printer. Typical applications mark and code one, two or three shifts per day or 24/7 operations, five to seven days per week, averaging 4,000 — 8,760 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications.

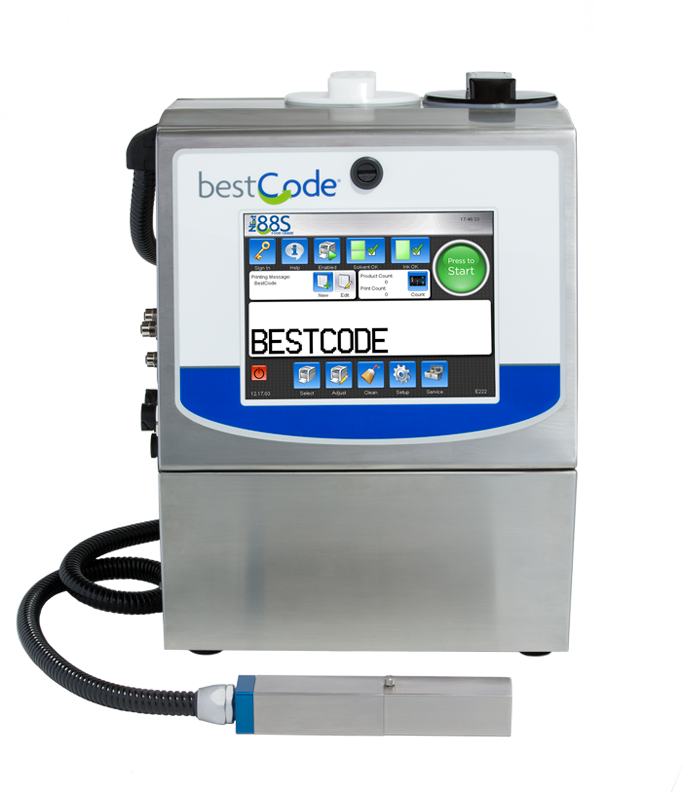

  • BestCode Model 88S High Speed Printer

    Higher Speed. High Use Applications. Bottling Applications. The BestCode Model 88S High Speed is targeted at higher speed, high use applications, printing 1, 2 or 3 lines of text, barcodes, or graphics. This model typically is used in high speed bottling applications such as large breweries and soda manufacturing. A complete range of dye and soft pigmented inks available and specialized inks for bottling applications including caustic washable inks for glass and plastics.

  • BestCode Model 88S High Speed One Printer

    Ultra High Speed Marking and Coding Applications. Canning, Bottling, Wire and Cable Manufacturing. The BestCode Model 88S High Speed One prints fast, high quality single and twin line codes, barcodes and graphics on the highest speed bottling, canning, wire/cable production lines. A complete range of specialized inks for glass bottles, returnable bottles,wet glass bottle coding, plastics, metal, thermo-sensitive color change inks and more. Ink dries in a second and can be permanent or removable with caustic solutions or water as required.

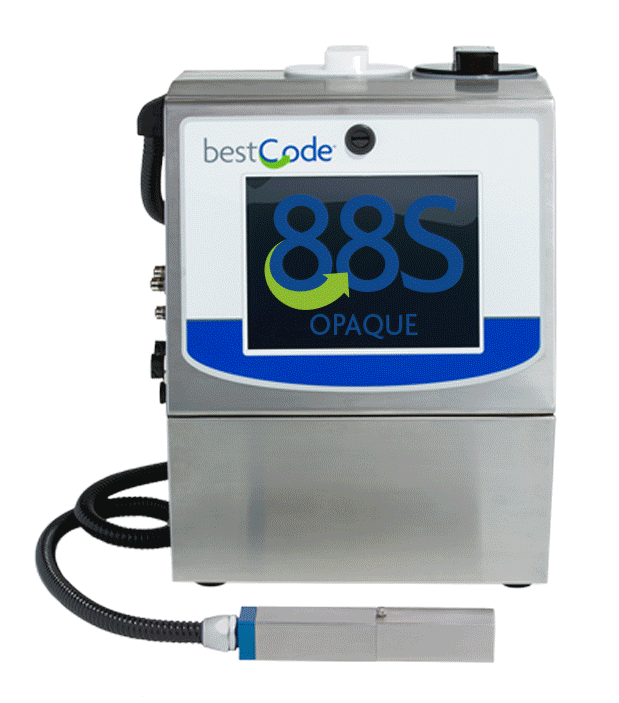

  • BestCode Model 88S Opaque System

    Print Dark Colored Substrates The BestCode Model 88S Opaque is targeted at applications that require high contrast printing inks on dark colored substrates. Print 1, 2, 3, 4 or 5 lines of text, barcodes or graphics. This model is typically used in high speed wire and cable applications as well as PVC pipe extrusion, automotive parts, cosmetics and other dark colored substrates. Print in a variety of colors — White for dark colored substrates and Light Blue, Aqua Blue, Silver/Gray and Pink allowing printing on dark and light colored substrates with one system.

  • BestCode Model 88S Food Grade System

    Print Direct to Food Products. USDA/FDA Approved and Compliant Inks. The BestCode Model 88S Food Grade is targeted at printing direct to food products such as eggs, cookies, baked goods and many other substrates that are for human consumption. Print 1, 2, 3, 4 or 5 lines of text or graphics. USDA and FDA approved/compliant inks are available in red, blue or green color. Systems are simplified to allow anyone to operate, minimizing operator touches, extending time between human interaction.

  • BestCode Model 88S Micro System

    High Resolution. High Speed. Micro Size Character Capable. The BestCode Model 88S Micro is targeted at applications requiring high resolution or micro size character requirements. Print 1, 2, 3, 4 or 5 lines of text, barcodes or graphics. The model is typically used in high speed wire and cable applications as well as electronics, pharmaceutical, automotive parts, cosmetics and other smaller size health care products. A complete range of dye based inks are available including in a variety of colors for a wide range of applications. Typical applications mark and code one, two or three shifts per day or 24/7 operations, five to seven days per week, averaging 4,000 — 8,760 hour annual operation. Utilize integrated RS232 and programmable inputs\outputs for remote control and communications.

  • BestCode Model 88S Security System

    Print Invisible, UV Light Readable. Product Security and Counterfeit Avoidance. The BestCode Model 88S Security is targeted at product traceability, security, counterfeit avoidance and brand protection applications. Ensure the product in question is truly your product. Invisible ink prints clear and invisible—can only be seen when fluoresced with UV light. The codes and marks light up a bright blue color. Printing is permanent to a wide range of substrates—drying immediately on metal, glass, plastic and more. Invisible codes survive high temperatures and remain invisible when exposed to high temperatures, steam processes such as that used for pasteurizations or sterilization processes. Users can print real-time one-dimensional (1D) and two-dimensional (2D) barcodes – Datamatrix, QR Code, and other custom dot codes on demand. Barcodes can be encrypted with company and product specific serialization information
